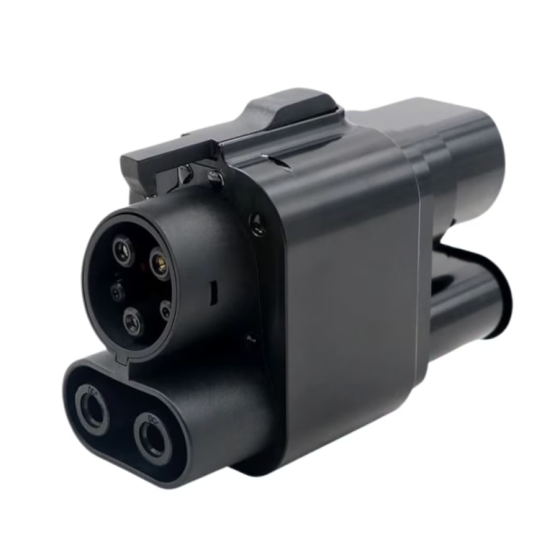

CCS2 to CCS1 AC+DC adapter Plug Adapter EV Charging Adaptor Fast Charging 250A AC+DC Type2 to Type1 J1772

Category:
Adapters
Price:
$185.00
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

CCS2 to CCS1 AC+DC adapter Plug Adapter EV Charging Adaptor Fast Charging 250A AC+DC Type2 to J1772

Product Parameters
Color
Black
Pins
Copper alloy, silver plated
Nominal power
250 kW max
Service life
> 10000 times
Current
50A-250A max
Plastic
PC + ABS
Working voltage
250VDC
Storage temperature
-30 °C ~ 85 °C
Insulation resistance
1000mΩ
Peculiarity
Security lock
Contact resistance
5 mOhm
Certification
CE, FCC
Fireproof hail
UL94-VO
Guarantee
12 months
Operating temperature
-40℃~+85℃
Connector
Ccs 2
Protection class
IP54
Double temperature switch, turns off charging when the adapter reaches 90°C

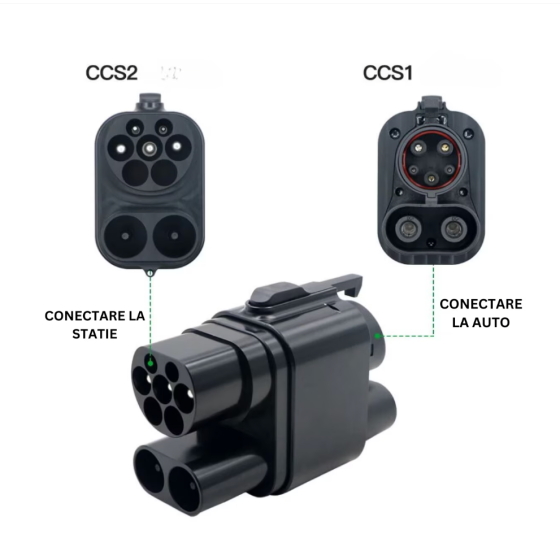

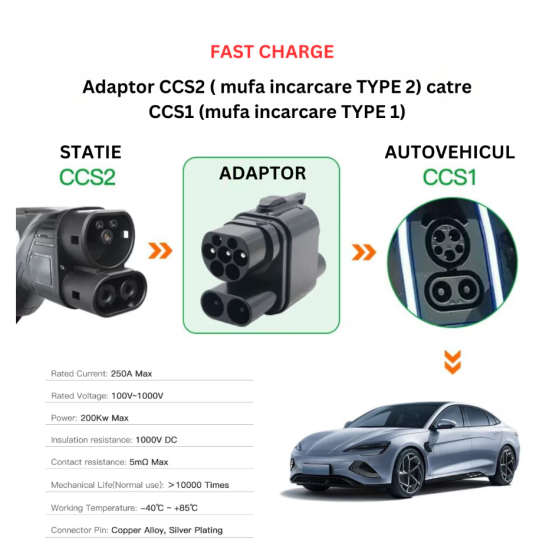

European Standard to American Standard DC + AC Combined into One Adapter
