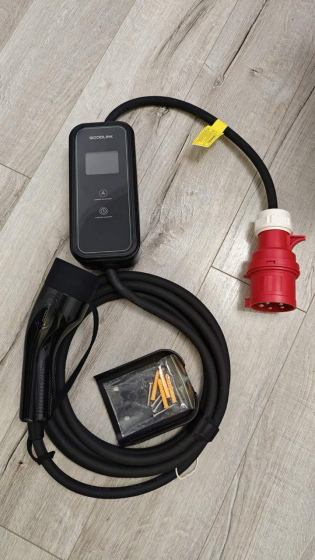

A mobile charging station for electric vehicles with a Type 2 connector will provide efficient charging of your car at home or on the road. An ideal choice for users looking for reliability and convenience.



Features:

Connector type on the car side: Type2

Maximum current rating for the car side connector: 3x16A 11 kw

Connector type on the socket side: CEE 3-pin

Maximum permissible current for the socket side connector: 32A

Operating voltage of the device: ~230V -15% +10%

Overvoltage protection: 260В

Control of current leakage to ground: present

Overcurrent control: present

Low voltage control: smart mode

Temperature control: yes

Relay sticking control: present

Ability to change the charging current: 7A - 32A in 1A increments

Indication of the operating mode: IPS display

Control via Wi-Fi: yes

Direct access (control from anywhere in the world): yes

Cable length: 5 м

Cable cross-section: 6mm²

Degree of protection: IP44

Warranty: 12 months

Specification

Product Name

portable EV charger 8A-32A

Model Wi-Fi

Adjustable Current

16A

Power

11KW

Cable specification

5*2.5mm²+1*0.5mm²  TPU OD：13.5mm

Votage

380V-480V

110V-250V

-35°C to 55°C

Standard

EN62752 EN62196-2&1 EN50620

User Interface

LED indicator+LCD display(2.4 inch)

Case material

Thermoplastic (flame retardant grade UL94-0)

Charging Inerface

 Plug +5M cable or custom cable length & color

Product Dimension

Type1 plug: 210*69*62 mm, Control Box: 218*100*60mm

Degree of Protection

Charging plug: IP65 Control box: IP65

Product Performance

Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection,Over temperature
protection (85°C). Lightning protection. Short circuit protection. flame retardant.
