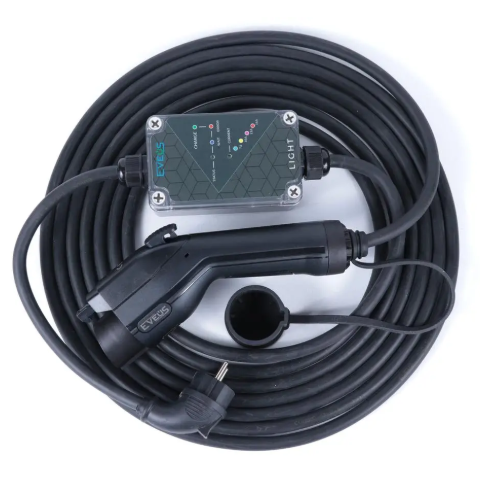

Charging station Eveus M16 [Type1/Type2/GBT/NacsTesla] 3.7 kW for electric vehicles with adjustable current [7/10/13/16A]
Category: |
Charging station |
Price: |
$184.80 |
Seria: |
Lite |
Power: |
16A |
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Charging station Eveus M16 [Type1/Type2/GBT] 3.7 kW for electric vehicles with adjustable current [7/10/13/16A]
All specifications.
Connector type on the car side: J1772/Type2/GBT
Maximum permissible current for vehicle side connector: 16A
Connector type on the socket side: Schuko
Maximum permissible current for the socket side connector: 16А
Operating voltage of the device: ~230V -15% +10%
Protection against overvoltage: 260В
Control of current leakage to ground: present 30mA
Overcurrent control: present
Low voltage control: present - adaptive
Temperature control: present
Relay sticking control: present
Ability to change the charging current: 7/10/12/16А
Indication of operating mode: LEDs
Cable length: 7 м
Cable cross-section: 2.5mm²
Degree of protection: IP44
Warranty: 12 months
